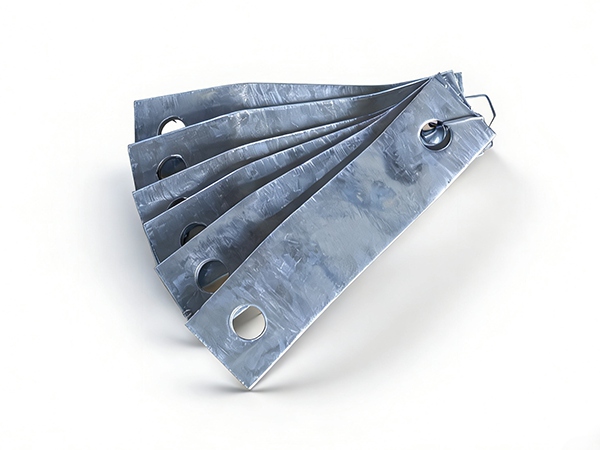

Guy Wire Anchor Plate

Guy Wire Anchor Plate – Product Overview

The Guy Wire Anchor Plate is a fundamental component used in overhead power line and telecommunication systems to provide a secure anchoring point for guy wires. Installed at ground level or connected to anchoring systems, it plays a critical role in stabilizing utility poles and towers by effectively transferring tensile loads from guy wires into the surrounding soil or foundation structure. Designed for strength, durability, and long-term outdoor performance, the anchor plate is essential for maintaining structural integrity under various environmental conditions.

Manufactured from high-quality carbon steel or structural steel, the Guy Wire Anchor Plate is engineered to withstand high tensile forces and resist deformation under continuous load. Its flat plate design, often combined with pre-punched or drilled holes, allows for easy connection with anchor rods, guy wire assemblies, and related hardware. The plate’s robust construction ensures a reliable load-bearing interface between the anchoring system and the ground.

Key Features and Advantages

One of the most important features of the Guy Wire Anchor Plate is its excellent load distribution capability. When installed underground or at the base of a structure, the plate increases the surface area in contact with the soil, improving resistance against pull-out forces. This helps ensure that the anchoring system remains stable even under high tension or adverse weather conditions such as strong winds or storms.

High strength and durability are central to its performance. The plate is manufactured using heavy-duty steel materials and processed through precision cutting and forming techniques. This results in a structurally sound product capable of supporting significant mechanical loads over extended periods without failure.

Corrosion resistance is another critical advantage. The anchor plate is typically treated with hot-dip galvanizing, creating a thick protective zinc coating that shields the steel from rust and environmental degradation. This makes it suitable for long-term use in challenging outdoor environments, including areas with high moisture, corrosive soil conditions, or industrial pollution.

The product is also designed for ease of installation. Its simple structure allows for quick integration into anchoring systems, whether used with anchor rods, helical anchors, or concrete foundations. The pre-drilled holes ensure proper alignment and secure fastening, reducing installation time and labor effort on-site.

Applications

Guy Wire Anchor Plates are widely used in power transmission and distribution systems to anchor guy wires that stabilize utility poles. They are essential in installations where poles are subjected to lateral forces, such as at line angles, dead-ends, or uneven terrain.

In addition to power line applications, these plates are also used in telecommunication towers, street lighting systems, and other vertical structures that require additional support. They are suitable for both permanent infrastructure projects and temporary installations where reliable anchoring is required.

Manufacturing Process and Quality Control

The production process begins with the selection of premium-grade steel, followed by cutting, stamping, or laser profiling to achieve the required plate dimensions. Holes are precisely punched or drilled to ensure compatibility with standard anchoring components. After fabrication, the plates undergo surface treatment, typically hot-dip galvanizing, to enhance corrosion resistance and extend service life.

Strict quality control measures are applied throughout the manufacturing process. Each plate is inspected for dimensional accuracy, flatness, and surface quality. Coating thickness tests and mechanical performance evaluations are conducted to ensure compliance with relevant industry standards and customer specifications.

Customization and Packaging

To meet different project requirements, Guy Wire Anchor Plates can be customized in terms of size, thickness, hole configuration, and surface treatment. Special markings and tailored designs can also be provided based on engineering drawings or project specifications. OEM and ODM services are available to support customized solutions and branding needs.

Products are packaged using durable export-standard methods such as wooden pallets, steel frames, or reinforced cartons to ensure safe transportation. Proper packaging minimizes the risk of damage during shipping and facilitates efficient handling and storage.

Conclusion

The Guy Wire Anchor Plate is a reliable and high-performance solution for anchoring and stabilizing guy wire systems in power and telecommunication infrastructure. With its strong load-bearing capacity, corrosion resistance, and ease of installation, it ensures long-term stability and safety of supported structures. Its versatility and durability make it an indispensable component for modern utility and construction projects worldwide.
