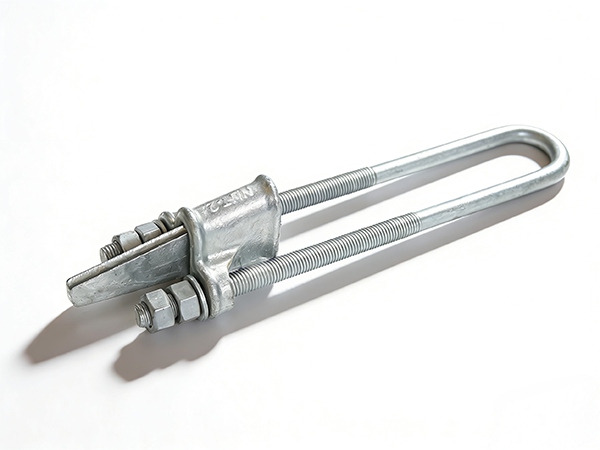

UT Type Strain Clamp

UT Type Strain Clamp – Product Overview

The UT Type Strain Clamp is a widely used dead-end and strain hardware fitting designed for overhead power transmission and distribution lines. It is specifically engineered to secure conductors under high tension at terminal poles, angle poles, and line dead-ends. With its robust structure and reliable gripping performance, the UT Type Strain Clamp ensures stable mechanical anchoring of conductors while maintaining long-term safety and efficiency in electrical infrastructure systems.

Manufactured from high-quality carbon steel or ductile iron, the UT Type Strain Clamp is designed for excellent mechanical strength and durability. The clamp body is precisely cast or forged, and typically consists of a U-shaped body with bolts and pressure plates that firmly grip the conductor or messenger wire. Its structure ensures uniform clamping force distribution, preventing conductor damage while maintaining secure fixation under continuous tension.

Key Features and Advantages

One of the key advantages of the UT Type Strain Clamp is its strong tensile and gripping capacity. It is designed to withstand high mechanical loads generated by conductor tension, wind pressure, and environmental stress. This ensures reliable performance in both medium and high-voltage overhead line systems.

The clamp also provides excellent conductor protection. Its internal contact surfaces are designed to distribute pressure evenly, reducing stress concentration on the conductor. This helps prevent deformation, slippage, or damage during long-term operation.

Corrosion resistance is another important feature. The UT Type Strain Clamp is typically treated with hot-dip galvanizing, which forms a thick protective zinc layer that resists rust, moisture, and chemical corrosion. This makes it suitable for harsh outdoor environments such as coastal areas, industrial zones, and regions with extreme weather conditions.

Ease of installation is also a major benefit. The UT Type Strain Clamp is designed for simple assembly using bolts and nuts, allowing quick and secure installation in the field. Its straightforward structure reduces labor time and ensures efficient maintenance or replacement when required.

Applications

UT Type Strain Clamps are widely used in overhead power transmission and distribution networks for dead-end anchoring of conductors. They are essential in securing conductors at terminal points, sharp angles, and long-span sections where high tension is present.

In telecommunication and utility infrastructure, these clamps are used for supporting messenger wires, cable suspension systems, and related hardware assemblies. They are also commonly applied in rural electrification projects, urban distribution networks, and substation line connections.

Additionally, UT Type Strain Clamps are used in railway electrification systems and industrial power networks where reliable conductor termination is required.

Manufacturing Process and Quality Control

The manufacturing process includes precision casting or forging of high-strength steel or ductile iron materials, followed by machining to ensure accurate dimensions and smooth assembly. Bolts and pressure components are separately processed to maintain tight tolerances and reliable fastening performance.

After fabrication, all components undergo hot-dip galvanizing or equivalent surface treatment to enhance corrosion resistance and extend service life. Strict quality control measures are implemented, including tensile strength testing, dimensional inspection, hardness testing, and coating thickness verification to ensure compliance with international standards.

Customization and Packaging

The UT Type Strain Clamp can be customized according to conductor size, load rating, structural design, and installation requirements. OEM and ODM services are available to support tailored engineering solutions and branding needs.

Products are typically packaged in export-standard wooden cases, steel pallets, or reinforced cartons to ensure safe transportation and handling. Proper packaging helps prevent damage, deformation, or loss of components during shipping and storage.

Conclusion

The UT Type Strain Clamp is a durable and reliable solution for conductor anchoring in overhead line systems. With its high strength, corrosion resistance, and stable gripping performance, it ensures long-term safety and operational stability in power transmission and distribution networks. Its simplicity and versatility make it an essential component in modern utility infrastructure projects worldwide.
