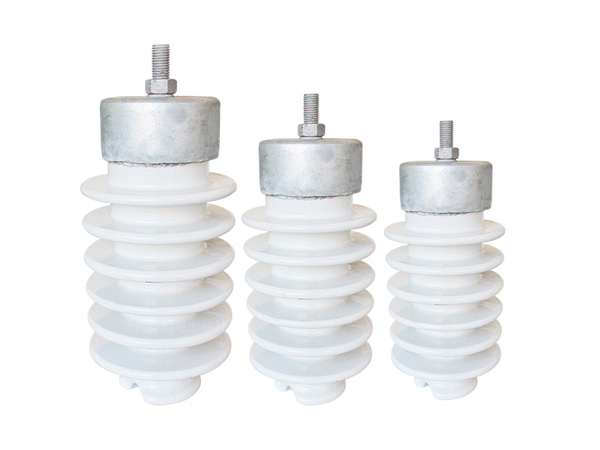

Line Post Porcelain Insulator

Line Post Porcelain Insulator – Product Overview

The Line Post Porcelain Insulator is a rigid support-type insulator widely used in overhead power transmission and distribution systems. It is designed to provide both mechanical support and electrical insulation for conductors mounted on poles or structures. As a key component in medium and high-voltage networks, it ensures safe separation between energized conductors and grounded supporting structures while maintaining stable mechanical performance under various environmental conditions.

Manufactured from high-quality electrical porcelain (ceramic material), the Line Post Porcelain Insulator is produced through advanced forming, glazing, and high-temperature firing processes. The porcelain body offers excellent dielectric strength, mechanical rigidity, and long-term stability. A smooth glazed surface enhances pollution resistance and prevents moisture accumulation, ensuring reliable performance in outdoor applications.

Key Features and Advantages

One of the primary advantages of the Line Post Porcelain Insulator is its excellent electrical insulation capability. It effectively prevents leakage current and flashover between energized conductors and supporting structures, ensuring safe operation of power lines under normal and adverse conditions.

High mechanical strength is another key feature. The insulator is designed to support conductor weight, wind pressure, and tension forces without deformation or failure. Its rigid post-type structure provides strong resistance against bending and compressive loads, making it suitable for various line configurations.

Durability and long service life are also important benefits. Porcelain material is highly resistant to aging, UV radiation, and environmental degradation. This ensures stable performance over many years of outdoor operation with minimal maintenance requirements.

The insulator also offers excellent pollution resistance. The glazed surface minimizes the accumulation of dust, salt, and industrial contaminants, reducing the risk of flashover in polluted or coastal environments. This makes it suitable for use in harsh operating conditions such as industrial zones, deserts, and coastal regions.

Applications

Line Post Porcelain Insulators are widely used in overhead power transmission and distribution systems to support conductors on straight lines, angle positions, and terminal structures. They are commonly installed on utility poles and substations for medium and high-voltage applications.

They are also used in railway electrification systems, industrial power networks, and urban grid infrastructure where rigid support and reliable insulation are required. In addition, they are suitable for substations where busbars and conductors need stable mechanical support.

Manufacturing Process and Quality Control

The manufacturing process involves high-grade porcelain raw materials that are molded into shape, dried, and fired at extremely high temperatures to achieve strong mechanical and dielectric properties. After firing, a glazed coating is applied to improve surface smoothness and pollution resistance.

Strict quality control measures are implemented throughout production, including electrical withstand testing, mechanical load testing, impulse voltage testing, and dimensional inspection. Each insulator is tested to ensure compliance with international standards such as IEC and ANSI.

Customization and Packaging

Line Post Porcelain Insulators can be customized according to voltage rating, mechanical load requirements, creepage distance, and structural design. OEM and ODM services are available to meet specific project and branding needs.

Products are typically packaged in reinforced wooden crates or heavy-duty export cartons with shock protection to ensure safe transportation and prevent breakage during handling and shipping.

Conclusion

The Line Post Porcelain Insulator is a durable and reliable solution for providing both mechanical support and electrical insulation in overhead line systems. With its high dielectric strength, strong mechanical performance, and long service life, it ensures stable and safe operation of power transmission and distribution networks. Its proven reliability makes it an essential component in traditional and modern electrical infrastructure projects worldwide.
